USB-C TO HDMI CONVERTER

Model name: VC-C101U-ETH

USB-C TO 18G HDMI2.0 CONVERTER WITH USB AND ETHERNET

The VC-C101U-ETH converts 4K@60Hz 4:4:4(max) DisplayPort alt mode signal over USB-C video input to 4K@60Hz 4:4:4(max) HDMI 2.0 video output.

For the USB-C input interface, it also supports USB 3.2 Gen1 data transfer, Gigabit LAN and 100W fast-charging.

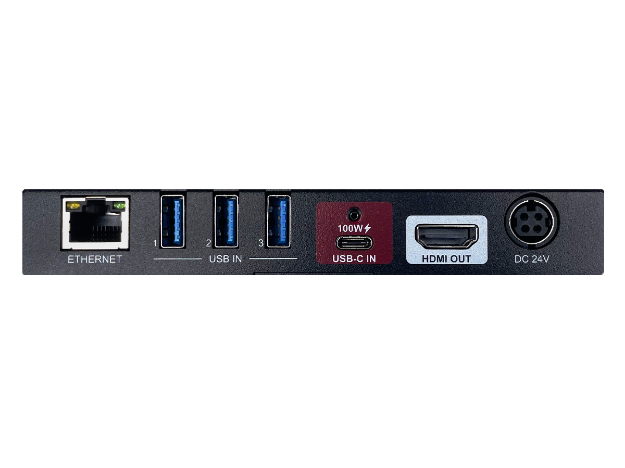

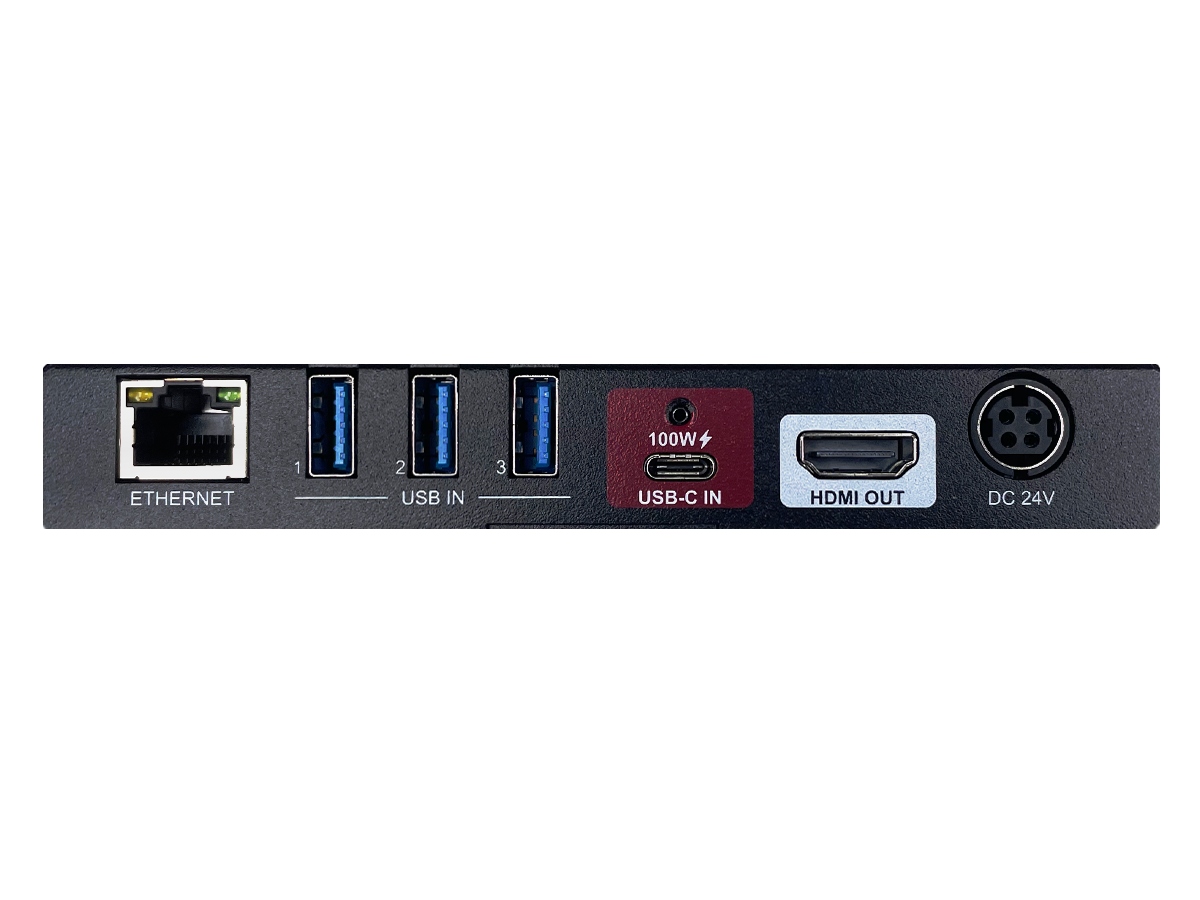

The converter includes three USB 3.2 device ports and one Ethernet Gigabit LAN port.

Features

Input supports DisplayPort Alt mode up to 4K@60Hz 4:4:4 using DisplayPort 1.4 (DisplayPort 1.2 is limited to 4K@30Hz 4:4:4).
Output supports HDMI 2.0, 4K@60Hz 4:4:4.
HDCP 2.3 support.
USB-C input supports 100W USB Power Delivery.
Supports USB3.2 Gen1 (up to 5 Gbit/s) data transfer via USB-C.
3x USB 3.2 device ports for camera, keyboard and mouse.
Ethernet Gigabit LAN pass-through via USB-C
No software drivers required - Plug and Play.

Video Input
Input	(1) 2-lane DisplayPort alt mode, DisplayPort 1.4
Input Connector	(1) USB-C
Input Resolution	Up to 4K@60Hz 4:4:4 (HBR3, 8.1Gbps)
Video Output
Output	(1) HDMI
Output Connector	(1) Female type-A HDMI
HDMI Output Resolution	Up to 4K@60Hz 4:4:4 (18Gbps)
HDMI Standard	2.0b
HDCP Version	2.3/1.x compliant
USB
Connector	(3) USB-A, (1) USB-C
USB Standard	(3) USB-A: USB 3.2 Gen 1, 5V1A External Power Supply (1) USB-C: USB 3.2 Gen 1, DisplayPort Alt mode, 100W PD
Ethernet
Standard	10/100/1000Base-T
General
Bandwidth	18Gbps
Operation Temperature	-10 ~ +55℃
Storage Temperature	-25 ~ +70℃
Relative Humility	10% - 90%
Power Supply	Input:100V~240V AC; Output: 24V DC 6.25A
Power Consumption	143W(Max)
Dimension (WHD)	145mm x 22mm x 80mm
Net Weight	290g
Compliance	FCC, CE
Environmental Compliance	RoHS, REACH, WEEE
